Pre-made Special-Shaped Pouch Packing Machine

The Preformed Shaped Pouch Packaging Machine is a fully automated system for processing pouches that have been pre-formed into a variety of custom shapes and sizes before packaging. This streamlines the packaging process and increases efficiency. Designed to handle complex, irregularly shaped packages, such as hourglass figures and fruit outlines, the machine ensures precise filling and secure sealing for a wide variety of products.

Pre-made Special-Shaped Pouch Packing Machine

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Main standard features

Why Is Pre-made Special-Shaped Pouch Packing Machine Popular?
Versatility: These machines can handle a variety of pouch shapes and sizes, making them suitable for different products, from snacks to cosmetics. This versatility allows manufacturers to cater to diverse market needs.

Efficiency: Using pre-made pouches can streamline the packing process. These machines can quickly fill and seal pouches, reducing labor costs.quadplex filling station can achieve production speed reaches up to 240 bags per minute.Overall efficiency (OEE) reaches over 95%

Reduced Material Waste: Pre-made pouches can minimize material waste compared to roll stock, as they are produced to specific sizes and shapes, leading to more efficient use of packaging materials.

Ease of Use: These machines are often user-friendly, requiring less training for operators, which can lead to quicker implementation and reduced downtime.

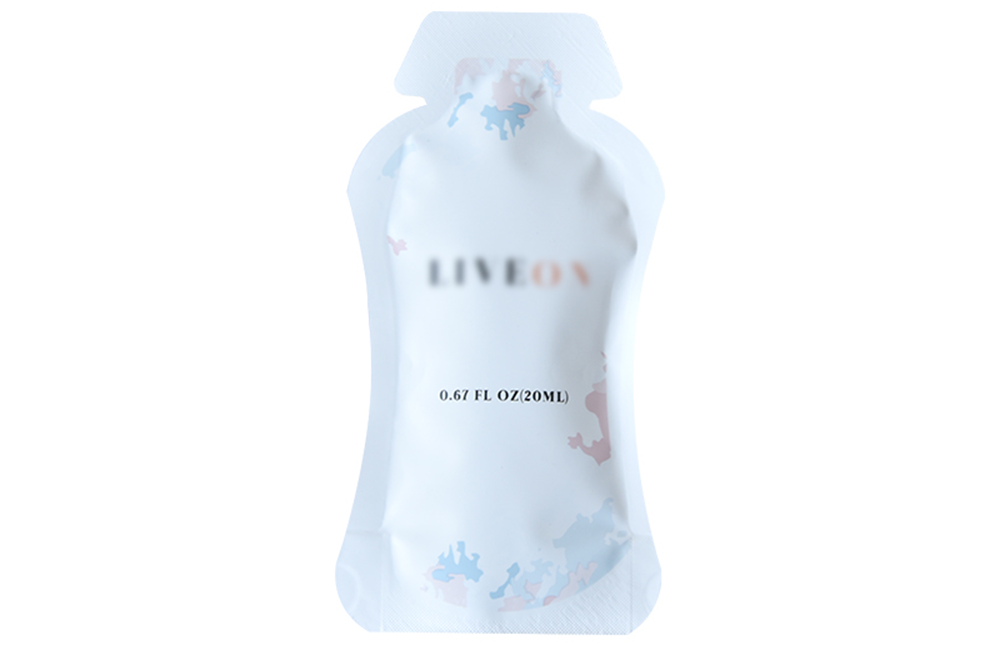

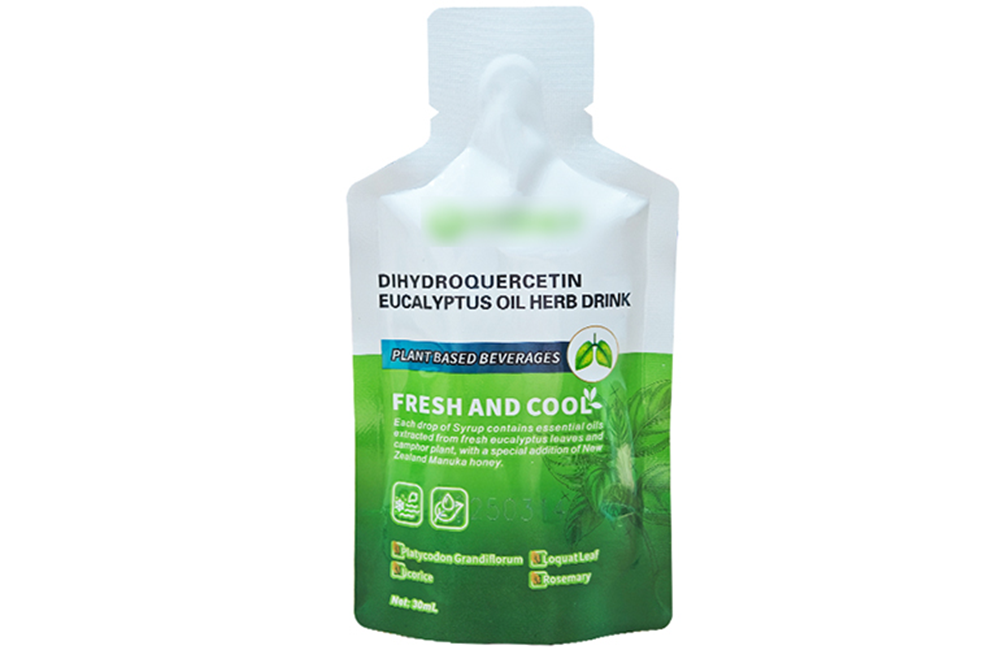

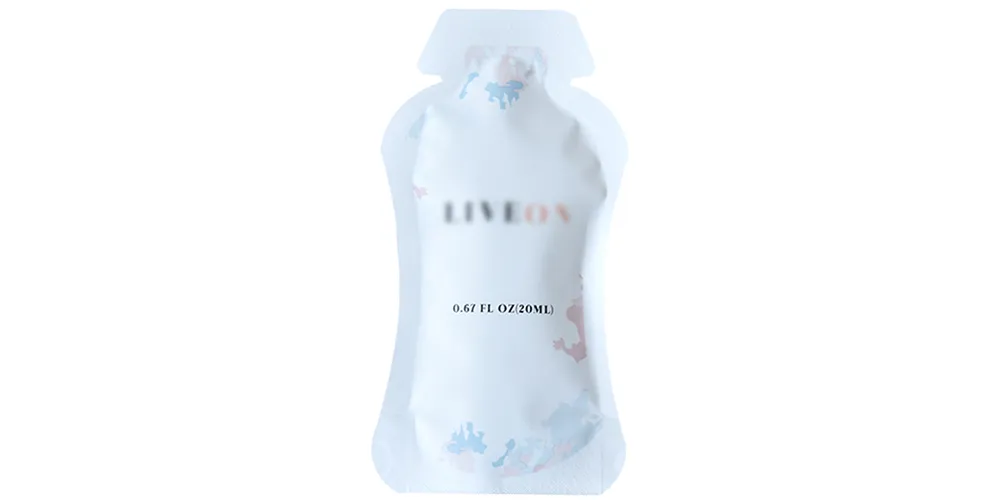

Packaging formats

Technical specifications

Model	SG-180B	SG-180DB	SG-360QB
Maximum Packing Volume	1200ml	100ml	100ml
Max Pouch Size	180mm*310mm	90mm*310mm	85mm*225mm
Min Pouch Size	60mm*80mm	60mm*80mm	60mm*120mm
Packing Speed	30-60ppm	80-100ppm	160-240ppm
Air Consumption	200NL/min	200NL/min	400NL/min
Input Power	1.8kw	1.8kw	3.6Kw
Working Power Supply	AC 380V 50Hz	AC 380V 50Hz	AC 380V 50Hz
Equipment Weight	700kg	800kg	3000kg
LWH	19909701390mm	19809701400mm	43609701400mm

Application

The versatility of Pre-made Special-Shaped Pouch Packing Machines makes them suitable for a wide array of products and industries:
Food and Beverage: snacks, candies, sauces, baby food, and juices.
Health and Beauty: Ideal for cosmetics, skincare products, and supplements that benefit from aesthetically pleasing and functional packaging.
Household Products: Suitable for cleaning supplies and detergents, where ergonomic shapes can improve handling and pouring.
Nutritional Supplements:oral hyaluronic acid, collagen peptides, and concentrated puree;Protein Powders and Meal Replacements;Pouches that are easy to carry and use, appealing to health-conscious consumers.
