The S-180T is specially designed for small and medium-sized bag and combined bag packaging. It features dual station feeding function, enabling the filling of different materials in AB bags, thus providing more possibilities for the products.
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Main standard features

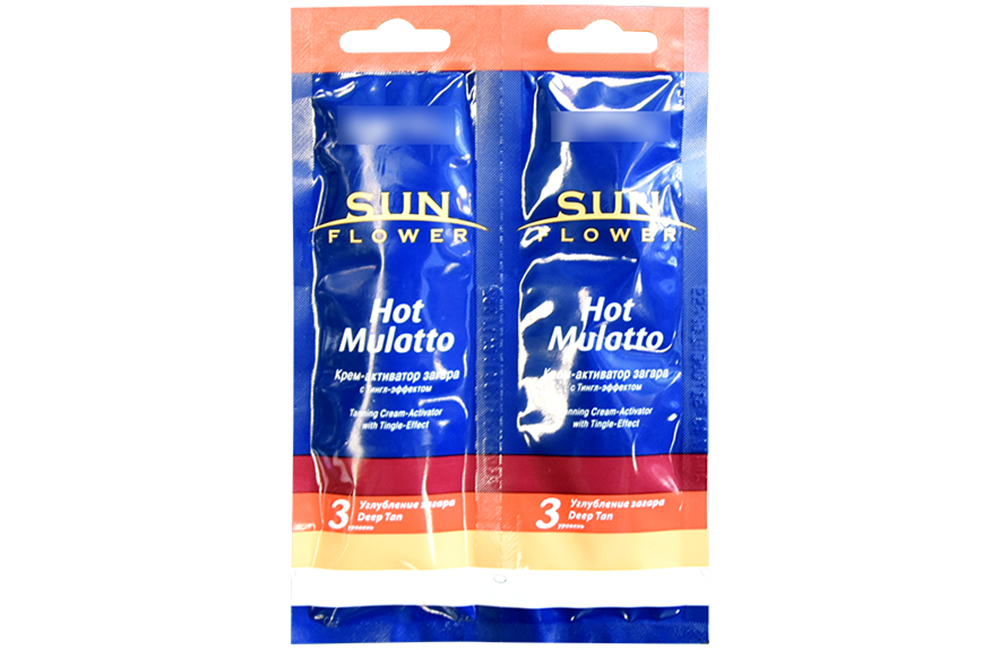

AB Bag Design
This equipment breaks through the traditional limitation of single bag for single material, and innovatively realizes the simultaneous or sequential filling of two completely different materials in a double-layer bag. Through independently controlled metering and filling systems, ensure that the two materials are precisely and separately filled into their respective chambers.
This flexibility opens up endless possibilities for product innovation. You can easily achieve:
Powder + Granules: For example, combine milk powder with grain granules, protein powder with bran chain amino acids (BCAA) granules.
Powder + Liquid: For example, combine concentrated fruit juice powder with vitamin liquid, detergent powder with care liquid. Mix them when using to maintain activity.
Granules + Liquid: For example, combine tea leaves with concentrated tea soup, coffee beans with flavoring syrup.
Simplify the user's usage process, achieve on-demand preparation and immediate use, ensure the freshness, activity and separation stability of the ingredients, thereby creating unique product selling points and user experience.
Independent sealing device
Pressure, temperature and time parameters can be independently fine-tuned according to different membrane materials and filled substances, ensuring an extremely tight seal edge can be formed at any production speed. This completely solves the problem of powder or liquid being trapped in the film at the sealing edge, resulting in poor sealing and leakage.
The bag is more flat and aesthetically pleasing.
The independent sealing system avoids interference between the two channels and ensures uniform tension. The sealing process is more stable, and the resulting edge pattern is clear, uniform and consistent. The overall shape of the bag is flat and stiff, without any distortion or wrinkles. This significantly enhances the display effect of the product on the shelves, highlighting the high-end quality and meeting the brand's strict requirements for packaging aesthetics.
This equipment breaks through the traditional limitation of single bag for single material, and innovatively realizes the simultaneous or sequential filling of two completely different materials in a double-layer bag. Through independently controlled metering and filling systems, ensure that the two materials are precisely and separately filled into their respective chambers.
This flexibility opens up endless possibilities for product innovation. You can easily achieve:
Powder + Granules: For example, combine milk powder with grain granules, protein powder with bran chain amino acids (BCAA) granules.
Powder + Liquid: For example, combine concentrated fruit juice powder with vitamin liquid, detergent powder with care liquid. Mix them when using to maintain activity.
Granules + Liquid: For example, combine tea leaves with concentrated tea soup, coffee beans with flavoring syrup.
Simplify the user's usage process, achieve on-demand preparation and immediate use, ensure the freshness, activity and separation stability of the ingredients, thereby creating unique product selling points and user experience.
Independent sealing device
Pressure, temperature and time parameters can be independently fine-tuned according to different membrane materials and filled substances, ensuring an extremely tight seal edge can be formed at any production speed. This completely solves the problem of powder or liquid being trapped in the film at the sealing edge, resulting in poor sealing and leakage.
The bag is more flat and aesthetically pleasing.
The independent sealing system avoids interference between the two channels and ensures uniform tension. The sealing process is more stable, and the resulting edge pattern is clear, uniform and consistent. The overall shape of the bag is flat and stiff, without any distortion or wrinkles. This significantly enhances the display effect of the product on the shelves, highlighting the high-end quality and meeting the brand's strict requirements for packaging aesthetics.

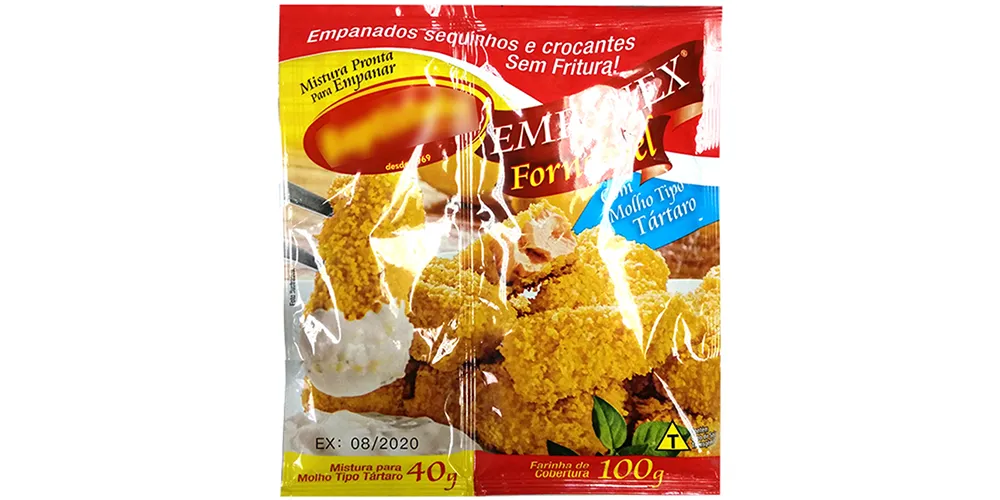

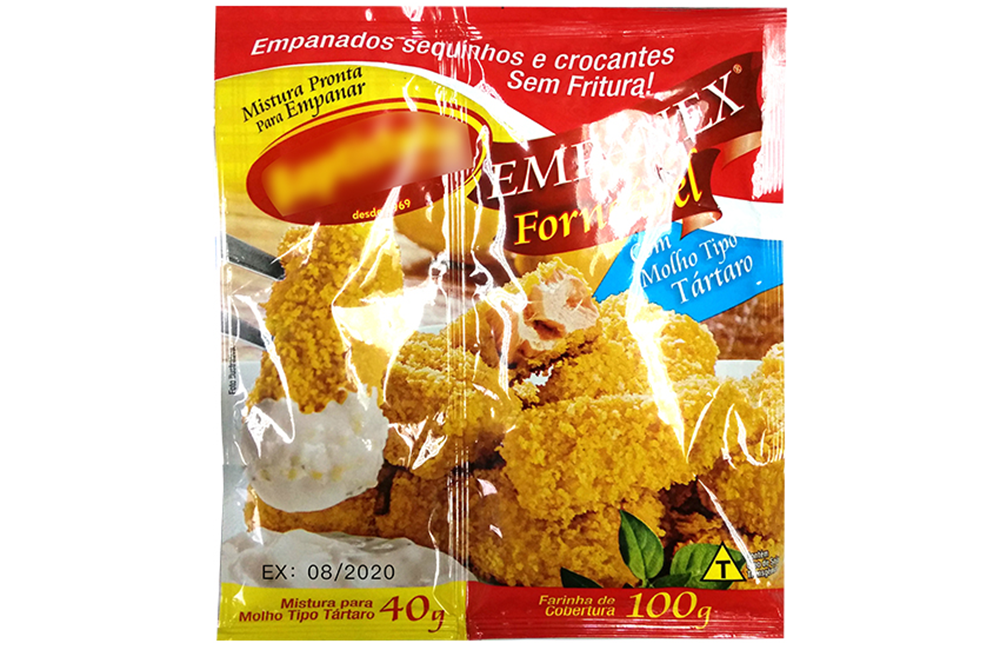

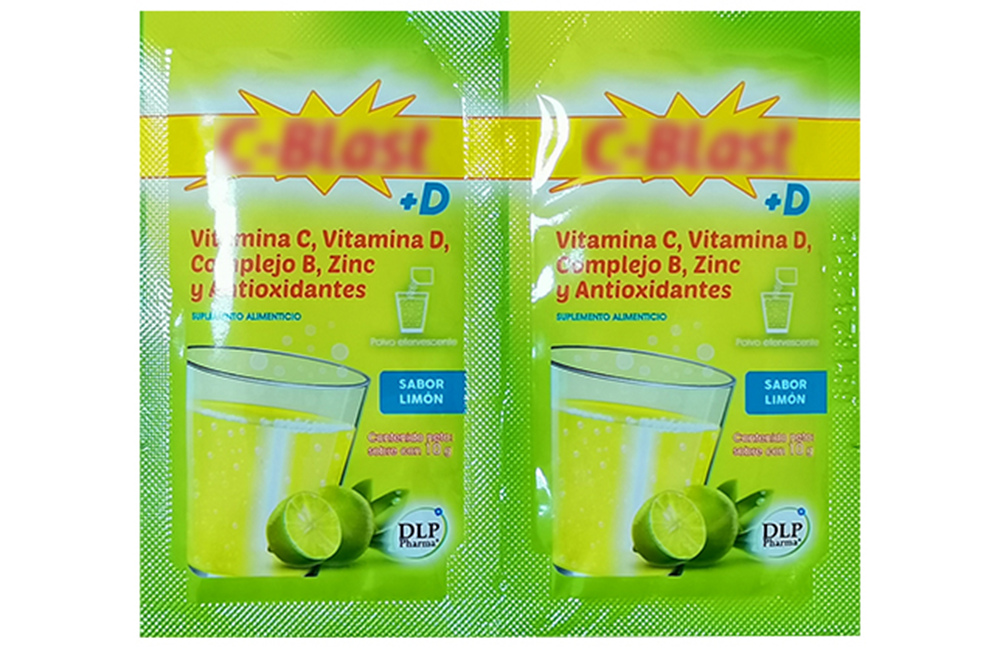

Packaging formats
Technical specifications
| Technical parameter | S-110T | S-180T | S-240T |
| Pouch Size(mm) | 50X50(Min.) 110X130(Max.) |
50X80(Min.) 90X225(Max.) |
60X80(Min.) 120X225(Max.) |
| Filling Capacity | 60ml | 100ml | 180ml |
| Packaging Speed | 40~80ppm | 80~160ppm | 80~160ppm |
| Power | 3.8kw | 5.6kw | 6.7kw |
| Air Consumption | 100NL/min | 200NL/min | 300NL/min |
| Machine Dimensions(mm) | 2200(L)750(W)1400(H) | 3500(L)970(W)1500(H) | 4590(L)970(W)1500(H) |
| Weight | 700kg | 1500kg | 1900kg |
Application
A wide range of dosing systems for all types of products on the market

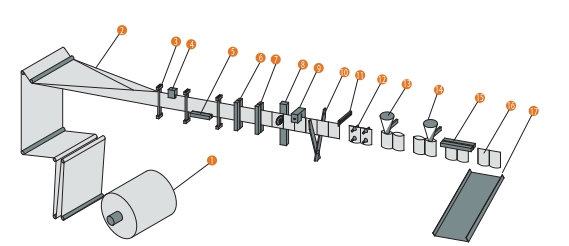

How It Work？
