The S-180DC features a simple dual outlet and suction nozzle design, with a maximum speed of 100 bags per minute. It is an economical solution for meeting the high-speed packaging requirements of small bag direct suction nozzles.
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Main standard features
Double-output model
With the core design of dual-channel synchronous operation, this model has achieved a leap in production capacity. Its standard production rate is stable at 60 to 100 bags per minute (i.e., 30-50 bags per minute per station), and the annual production capacity can easily exceed the 10 million bag level. This means that within the same period of time, you can complete twice the production tasks, greatly meeting the demands of peak season promotions, urgent orders, or large-scale batch production, with a significant return on investment.
This design is a prime example of "maximizing production capacity in space". Through an innovative compact layout, two complete packaging units are highly integrated within a machine body that occupies an area similar to that of a single-station model. It enables you to achieve the maximum production output within a limited factory space, perfectly addressing the core pain points of manufacturing enterprises that face high land costs, narrow production workshops, and the pursuit of maximum output.
Double suction nozzle function
With a precise suction nozzle positioning and heat sealing system, each suction nozzle can be accurately placed and fully adhered to the bag body without wrinkles or skewing. The sealing line is clear and aesthetically pleasing, significantly enhancing the appearance grade and brand image of the product, making your product stand out on the shelf.
The sealing process has been meticulously optimized. By precisely controlling temperature, pressure and time parameters, a strong and airtight fusion is formed between the bag body and the base of the suction nozzle. This seal has undergone rigorous negative pressure and pressure tests to ensure that it can absolutely prevent leakage even when containing liquids, powders or subjected to transportation jolts, thus guaranteeing the integrity and safety of the product from the factory to the consumer's hands.
Double scissor mechanism
Equipped with two independent and highly rigid scissor cutting units, the motion trajectory has been optimized, providing strong, stable shearing force with minimal vibration, effectively extending the blade life.
This is one of the core links for doubling the production capacity of the double-exit model. The double scissor mechanism is perfectly synchronized with the dual-channel filling and traction system. Within one working cycle, it precisely and synchronously completes the cutting and separation of two bags of products. It eliminates the efficiency bottleneck of the traditional single cutter at high speeds, truly achieving parallel processing throughout the entire production process from "production - cutting - output", ensuring that the doubling of production capacity is not just a theoretical value but a stable and actual output.
With the core design of dual-channel synchronous operation, this model has achieved a leap in production capacity. Its standard production rate is stable at 60 to 100 bags per minute (i.e., 30-50 bags per minute per station), and the annual production capacity can easily exceed the 10 million bag level. This means that within the same period of time, you can complete twice the production tasks, greatly meeting the demands of peak season promotions, urgent orders, or large-scale batch production, with a significant return on investment.
This design is a prime example of "maximizing production capacity in space". Through an innovative compact layout, two complete packaging units are highly integrated within a machine body that occupies an area similar to that of a single-station model. It enables you to achieve the maximum production output within a limited factory space, perfectly addressing the core pain points of manufacturing enterprises that face high land costs, narrow production workshops, and the pursuit of maximum output.
Double suction nozzle function
With a precise suction nozzle positioning and heat sealing system, each suction nozzle can be accurately placed and fully adhered to the bag body without wrinkles or skewing. The sealing line is clear and aesthetically pleasing, significantly enhancing the appearance grade and brand image of the product, making your product stand out on the shelf.
The sealing process has been meticulously optimized. By precisely controlling temperature, pressure and time parameters, a strong and airtight fusion is formed between the bag body and the base of the suction nozzle. This seal has undergone rigorous negative pressure and pressure tests to ensure that it can absolutely prevent leakage even when containing liquids, powders or subjected to transportation jolts, thus guaranteeing the integrity and safety of the product from the factory to the consumer's hands.
Double scissor mechanism
Equipped with two independent and highly rigid scissor cutting units, the motion trajectory has been optimized, providing strong, stable shearing force with minimal vibration, effectively extending the blade life.
This is one of the core links for doubling the production capacity of the double-exit model. The double scissor mechanism is perfectly synchronized with the dual-channel filling and traction system. Within one working cycle, it precisely and synchronously completes the cutting and separation of two bags of products. It eliminates the efficiency bottleneck of the traditional single cutter at high speeds, truly achieving parallel processing throughout the entire production process from "production - cutting - output", ensuring that the doubling of production capacity is not just a theoretical value but a stable and actual output.

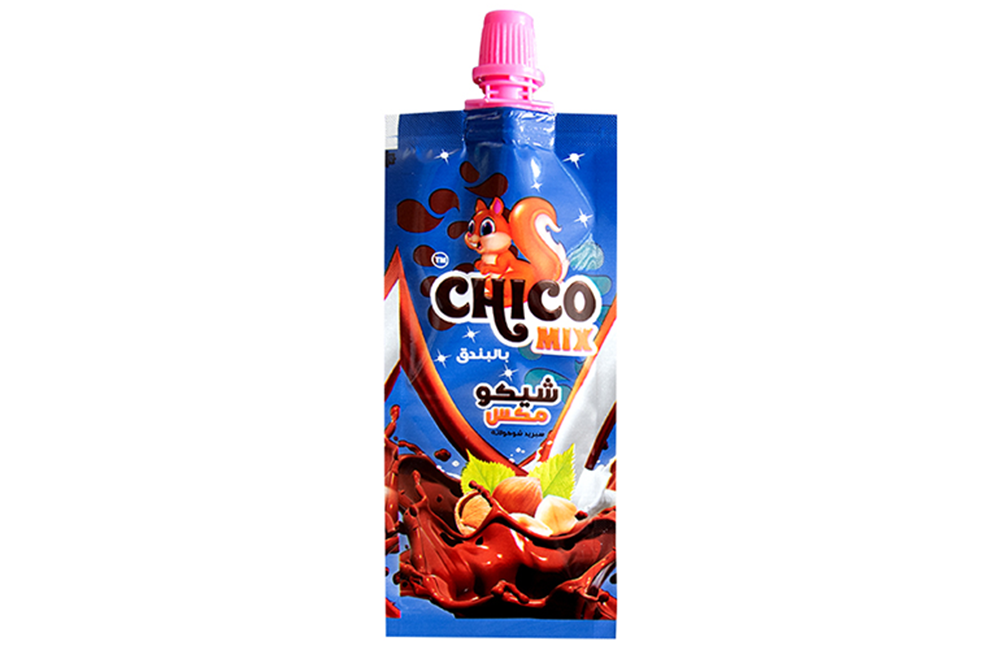

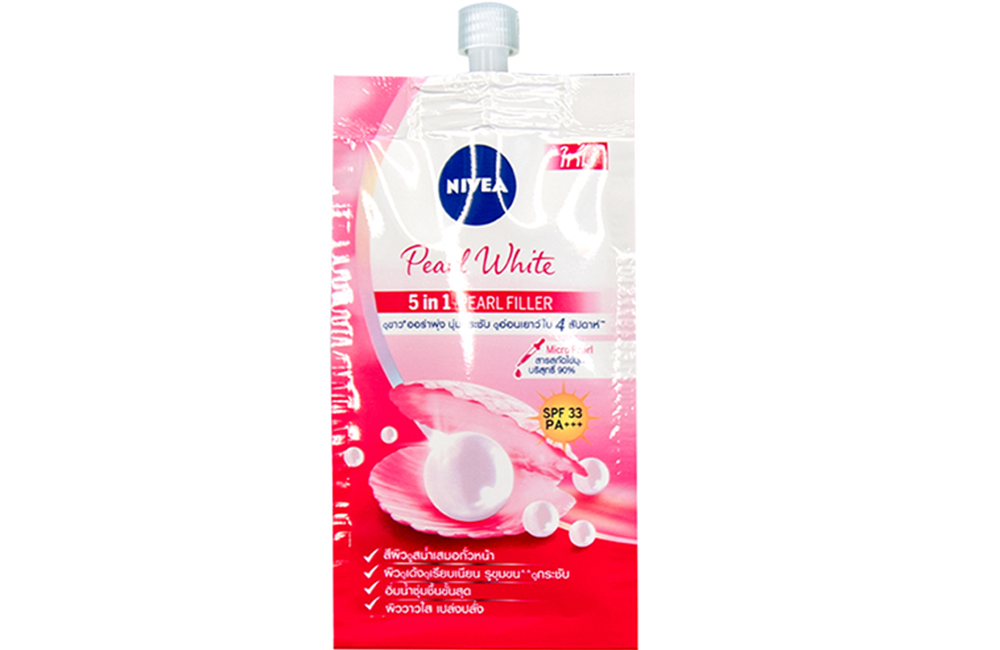

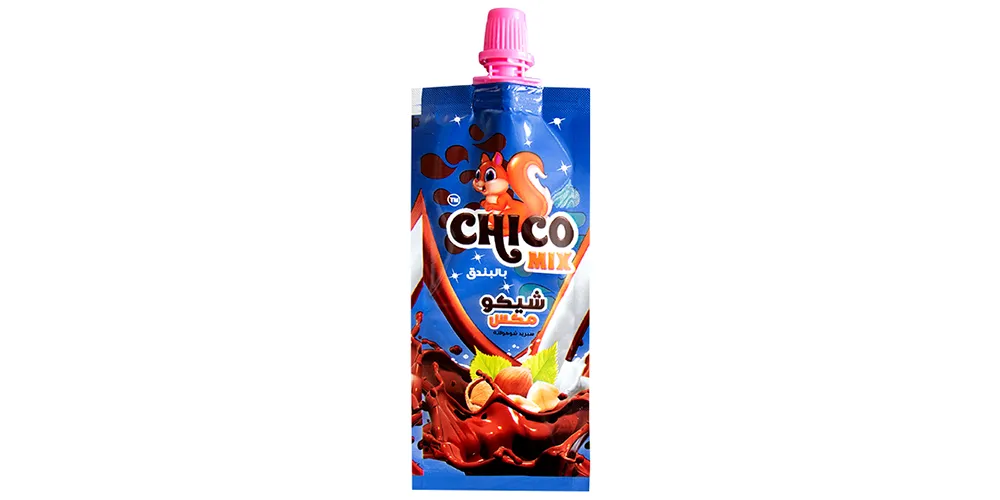

Packaging formats
Technical specifications
| Technical parameter | S-180C | S-180DC | S-240DC |
| Pouch Size(mm) | 60X80(Min.) 160X225(Max.) |
60X80(Min.) 90X225(Max.) |
60X80(Min.) 120X225(Max.) |
| Filling Capacity | 300ml | 100ml | 180ml |
| Packaging Speed | 40–60ppm | 80–120ppm | 80–120ppm |
| Power | 6.1kw | 8.2kw | 9.3kw |
| Air Consumption | 300NL/min | 300NL/min | 400NL/min |
| Machine Dimensions(mm) | 4160(L)970(W)1500(H) | 4210(L)970(W)1500(H) | 5200(L)970(W)1500(H) |
| Weight | 1600kg | 1800kg | 2500kg |
Application
A wide range of dosing systems for all types of products on the market

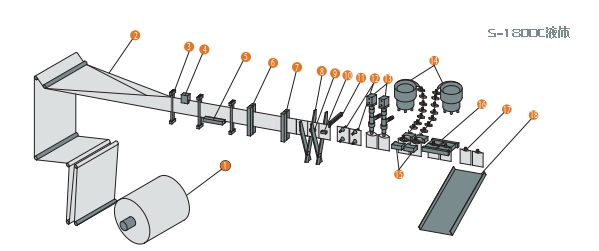

How It Work？
