Fully automatic pre-made zipper bag packaging machine

Fully automatic pre-made zipper bag packaging machine designed to fill and seal pre-existing pouches, including those equipped with a zipper reclosure.Unlike form-fill-seal machines that create the bag from a roll of film, this equipment works with bags that are already manufactured, simplifying the packaging process.This automation helps to increase production speed, reduce labor costs, and minimize human error.

Fully automatic pre-made zipper bag packaging machine

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Main standard features

Premade zipper pouch packing machines offer several advantages:
Full Automation: The entire process, from bag feeding to sealing, is fully automated, requiring minimal manual intervention.

Efficiency&Cost-Effectiveness: Automated duplex design enhance production speed and overall efficiency.Production speed reaches up to 120 bags per minute.Overall efficiency (OEE) reaches over 95%
By reducing the need for manual labor,lower operational costs.

Versatility&Flexibility: These machines can handle a wide range of pouch types, including stand-up pouches, flat pouches etc..They are suitable for packaging a vast array of products, including solids, powders, granules, and liquids.

Ultra-high precision: The servo control system enables packaging accuracy of up to 1%, ensuring precise filling and high-quality sealing, helping to maintain product integrity and extend shelf life.

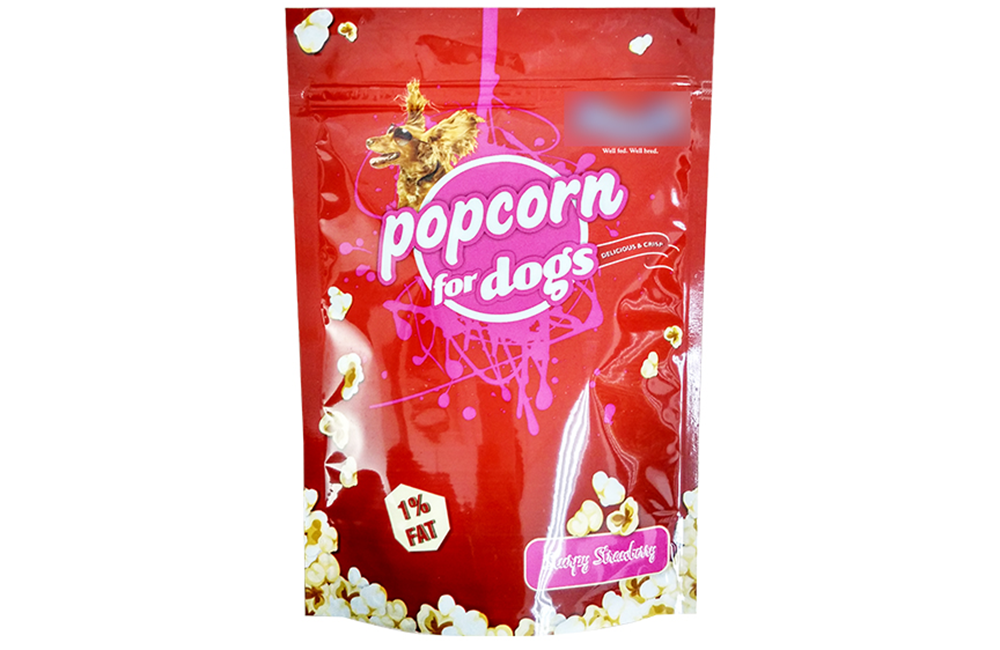

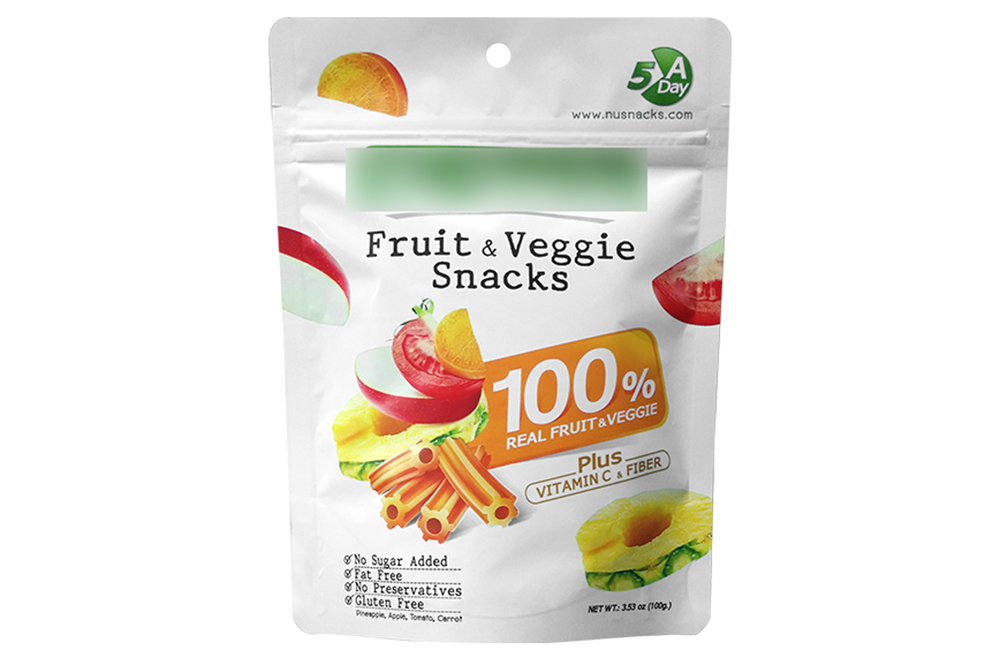

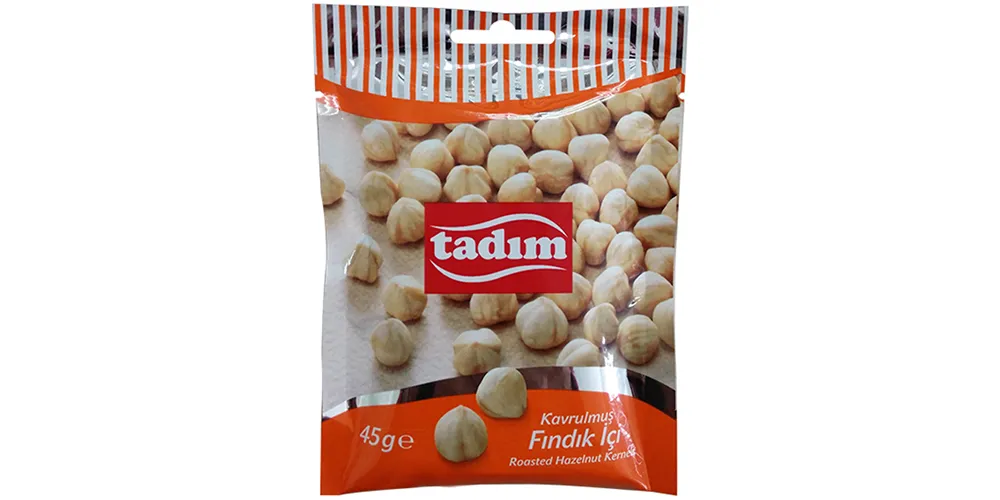

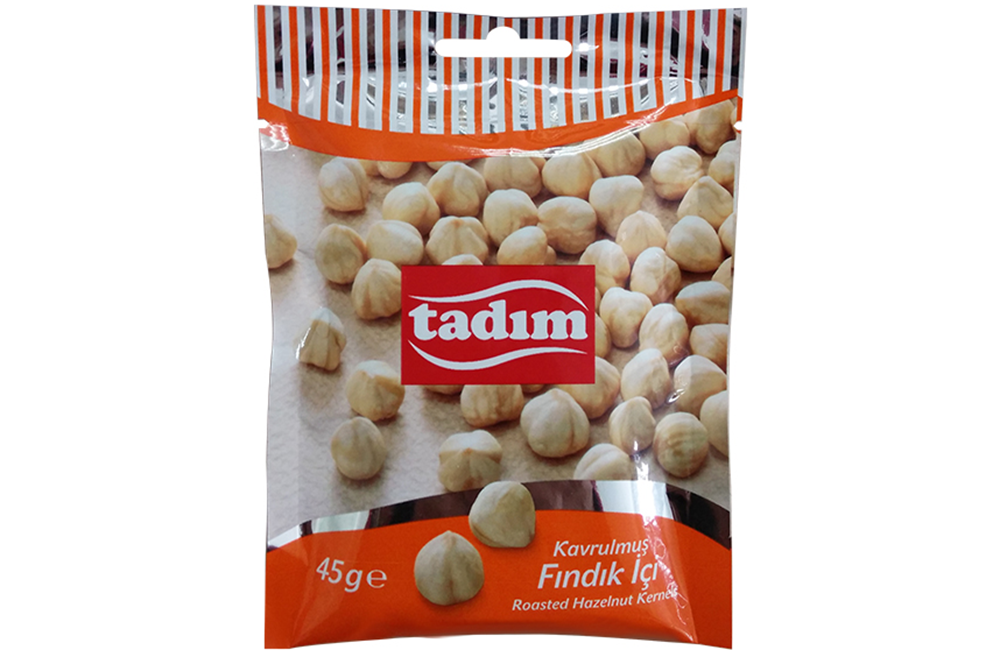

Packaging formats

Technical specifications

Model	SG-180Z	SG-210Z	SG-240Z	SG-280Z	SG-320DZ
Maximum Packing Volume	1200ml	1600ml	2000ml	3000ml	1500ml
Max Pouch Size	180mm*310mm	210mm*310mm	240mm*350mm	280mm*400mm	180mm*310mm
Min Pouch Size	60mm*80mm	90mm*110mm	90mm*120mm	90mm*120mm	90mm*110mm
Packing Speed	30-60ppm	30-60ppm	30-60ppm	30-60ppm	60-120ppm
Air Consumption	200NL/min	250NL/min	450NL/min	450NL/min	350NL/min
Input Power	1.8kw	2.8kw	3.4kw	6.5kw	7.5kw
Working Power Supply	AC 380V 50Hz	AC 380V 50Hz	AC 380V 50Hz	AC 380V 50Hz	AC 380V 50Hz
Equipment Weight	700kg	1000kg	1140kg	2000kg	3000kg
LWH	19909701390mm	27009701400mm	310010101400mm	410010201500mm	449010501400mm

Application

Full Automatc Premade zipper pouch packing machines are utilized in a multitude of industries for various products:
Food and Beverage: Packaging for snacks, coffee, tea, spices, pet food, frozen foods, and sauces.
Pharmaceuticals: For tablets, capsules, and powders.
Cosmetics: Packaging for creams, lotions, and gels.
Chemicals: For detergents, fertilizers, and other household or industrial products.
