Home > Shop > Horizontal Packaging Machine > Automatic pre-made top spout bag horizontal packaging machine

Automatic pre-made top spout bag horizontal packaging machine

An automatic pre-made top spout bag horizontal packaging machine is a specialized piece of equipment designed for efficiently packaging products into pre-made pouches that have a top spout.widely used across various industries, particularly for liquid and semi-liquid products

Automatic pre-made top spout bag horizontal packaging machine

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Main standard features

Main standard features

Full Automatic Operation: The machine automates the entire packaging process, including pouch feeding, filling, sealing, and cutting, which enhances efficiency and reduces labor costs.Overall efficiency (OEE) reaches over 95%

Pre-Made Pouches: It uses pre-made pouches, which are produced separately and then fed into the machine. This allows for a variety of shapes and sizes, including those with spouts for easy pouring.

Horizontal Configuration: The horizontal design of the machine allows for a compact footprint and can be more suitable for certain production lines, especially when space is limited.

Filling Mechanism: Dual filling station can achieve production speed reaches up to 120 bags per minute that can handle various types of products, including liquids, pastes, and granules, depending on the application.

Independent Cooling Sealing Device:
in the sealing station, heat and pressure are applied to the top of the pouch to create a strong, leak-proof seal.For spout bags, the sealing jaws are designed to work around the spout.After sealing, the pouch may pass through a cooling station to set the seal quickly. This process can instantly set the seal, effectively preventing deformation, wrinkles, or "edge lifting" of the seal edge due to residual heat. It is particularly suitable for thick films, composite films, etc., and can significantly improve the appearance, flatness, and sealing reliability of the seal.

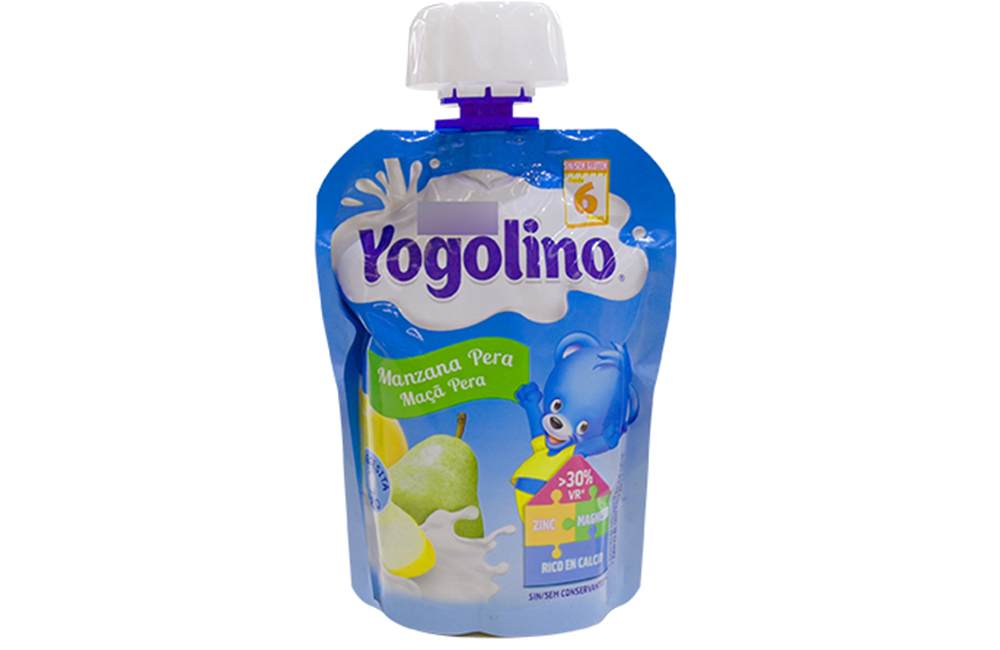

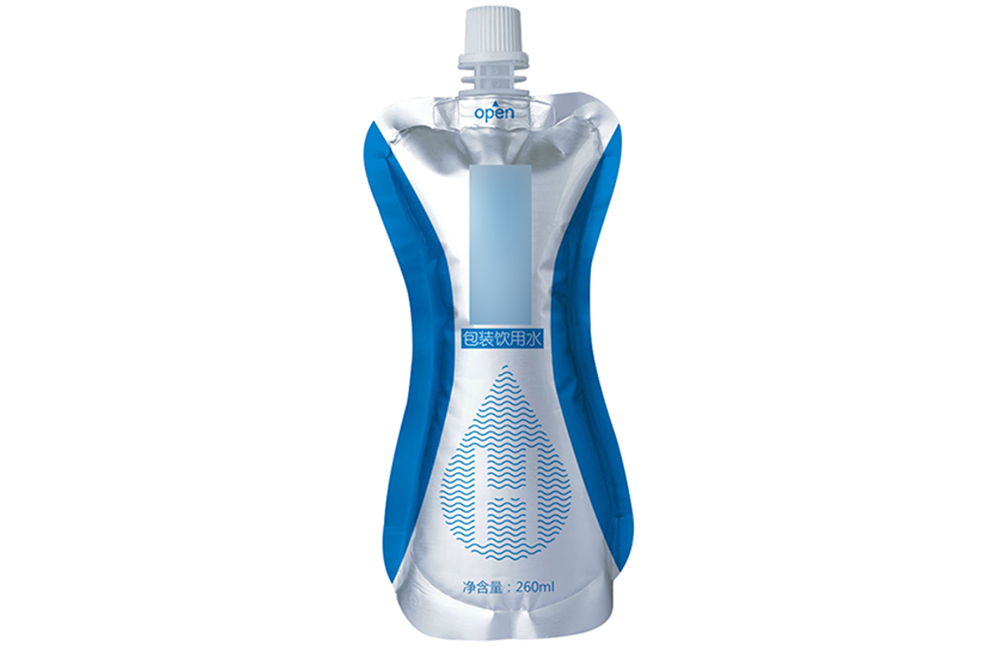

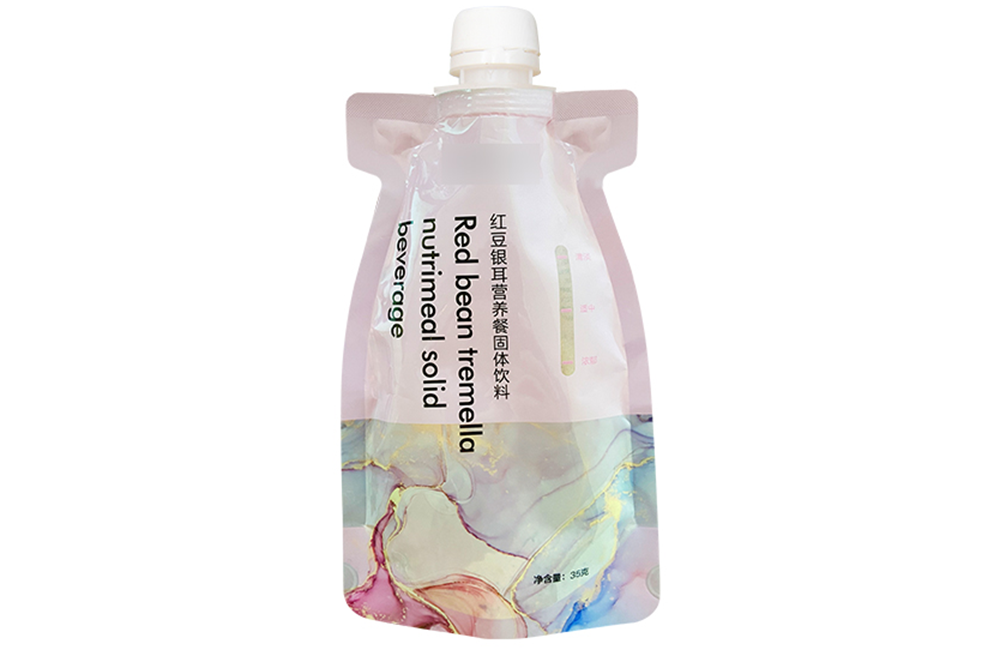

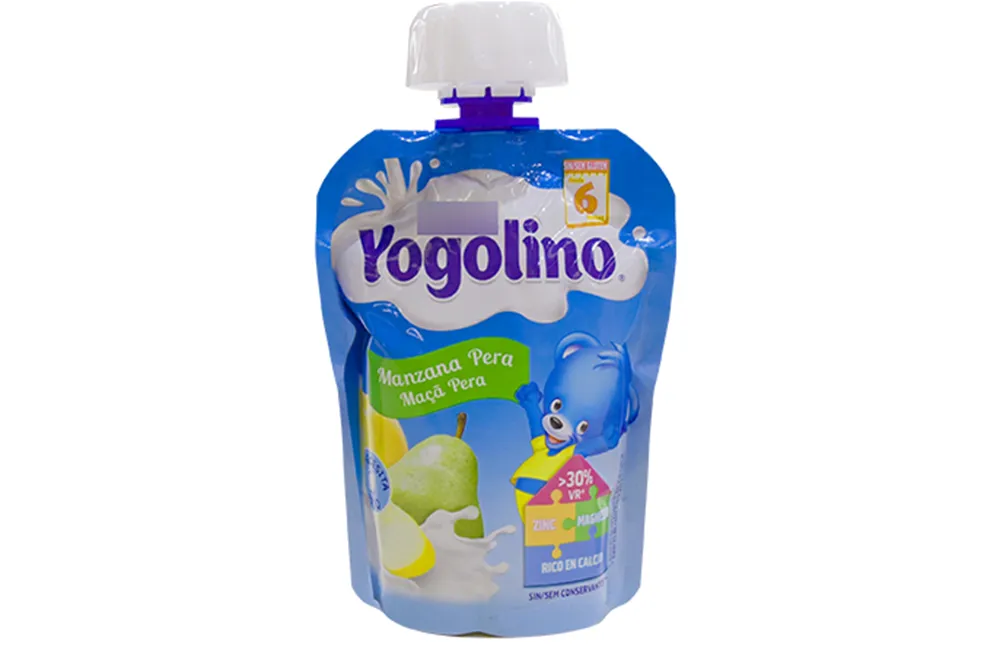

Packaging formats

Technical specifications

Model	SG-180C	SG-360DC
Maximum Packing Volume	1300ml	1300ml
Max Pouch Size	160mm*310mm	160mm*310mm
Min Pouch Size	60mm*80mm	90mm*120mm
Packing Speed	30-60ppm	60-120ppm
Air Consumption	300NL/min	400NL/min
Input Power	4.1kw	9.6kw
Working Power Supply	AC 380V 50Hz	AC 380V 50Hz
Equipment Weight	700kg	3000kg
LWH	21909701400mm	41009701400mm

Application

Beverages: Juices, smoothies, and sauces that require easy pouring.
Dairy Products: Yogurts and liquid creams packaged for convenience.
Condiments: Ketchup, mustard, and other sauces that benefit from a spout for dispensing.
Personal Care: Liquid soaps, shampoos, and conditioners in user-friendly packaging.
