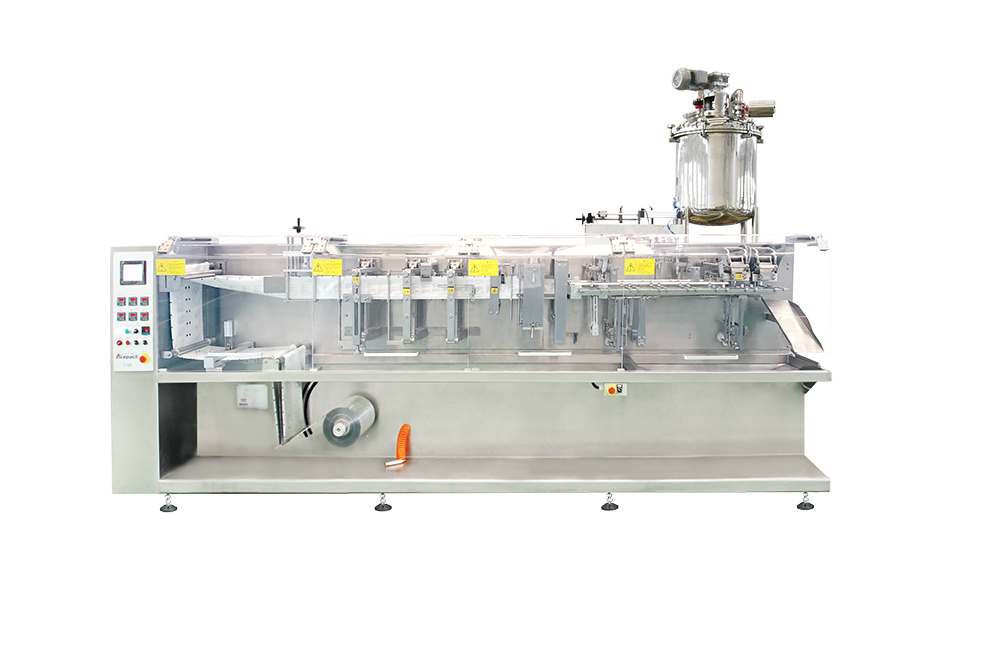

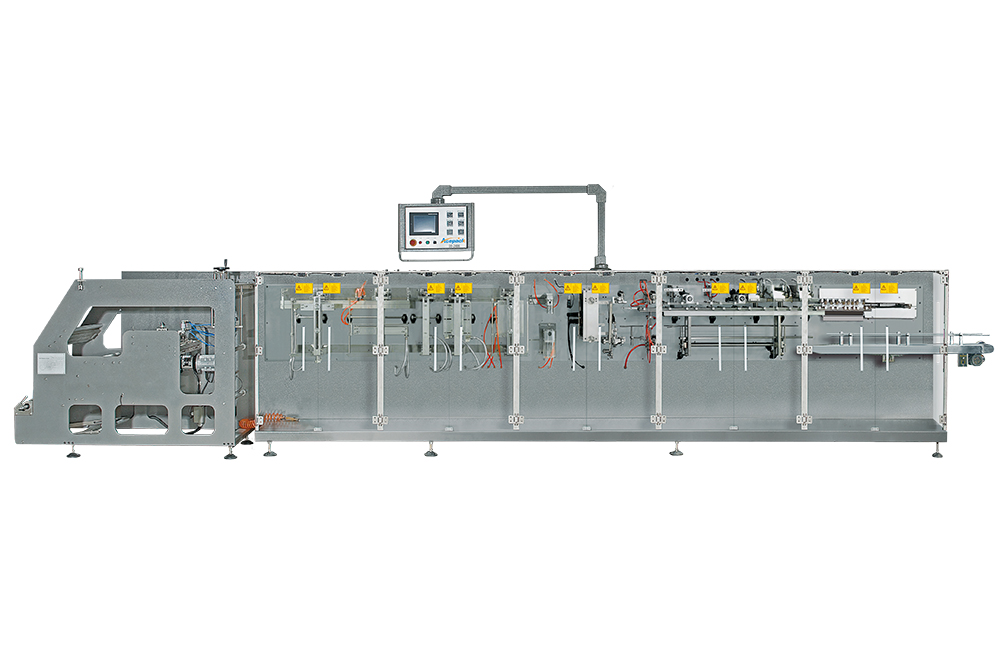

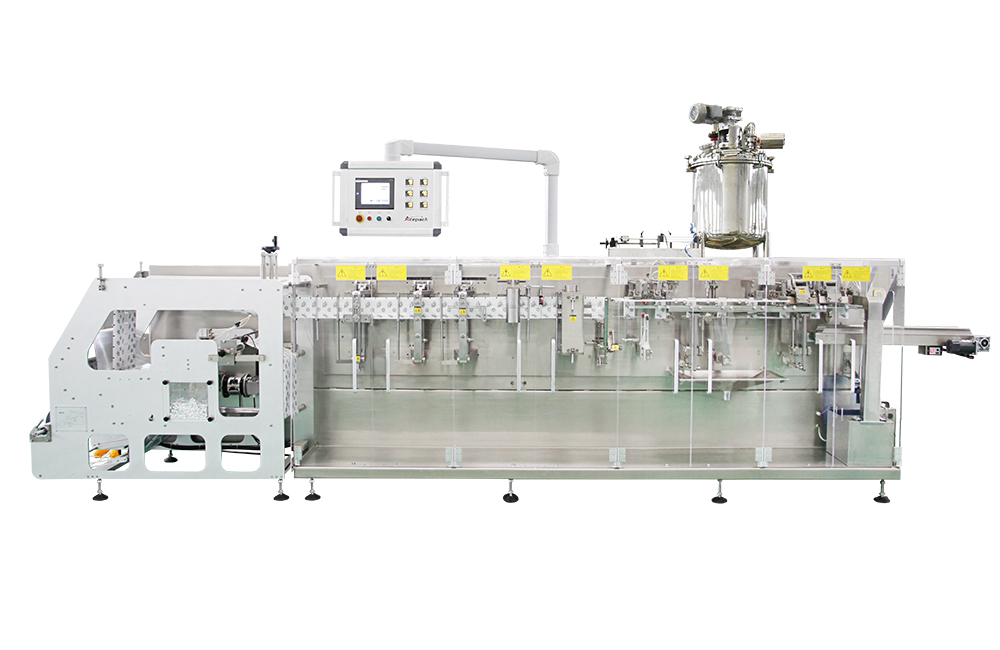

Standard

Quality Standard suppliers & exporter - all products made in China.

Share This Product:

Product Description

1.Film Unwind 2.Bottom Hole Punching 3.Bag Forming 4.Film Guide 5.Bottom Seal 6.Vertical Seal l 7.Vertical Seal II 8.Tear Notch 9.Photocell 10.Servo Advance 11.Cutting 12.Pouch Catching 13. Pouch Opening 14.Air Flushing 15.Filling I 16.Filling II 17.Top Seal I 18.Top Seal II 19.Finished Product 20.Outlet

Technical Parameter

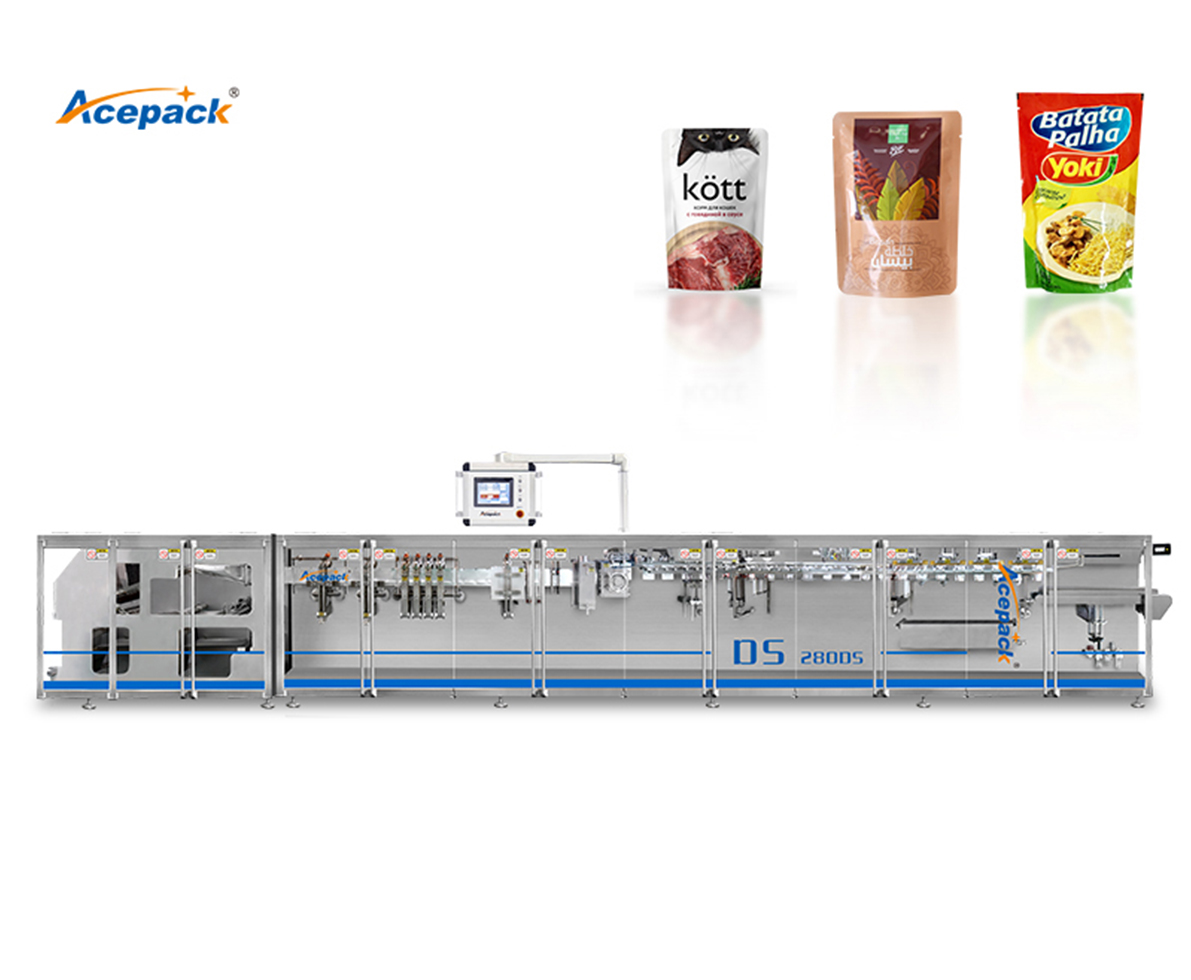

Modle	DS-140S	DS-180S	DS-240S	DS-280DS
Pouch Size	6090mm（Min） 140225mm(Max)	90110mm（Min） 180260mm(Max)	100120mm（Min） 240320mm(Max)	90110mm（Min） 140250mm(Max)
Filling capacity	500ml	1200ml	2000ml	600ml
Packing capacity	50-80ppm	40-60ppm	30-60ppm	80-120ppm
Powder	6.5KW	6.5KW	10kw	10KW
Air consumption	200NL/min	200NL/min	300NL/min	400NL/min
Machine Dimensions	4280mm(L) 970mm(W) 1500mm(H)	5550mm(L) 1100mm(W) 1400mm(H)	6900mm(L) 1250mm(W) 1550mm(H)	7400mm(L) 1060mm(W) 1400mm(H)
Weight	1600kg	2000kg	2600kg	3000kg
Function	Flat pouch,Doypack	Doypack, Shape, Hanging Hole	Doypack, Shape, Hanging Hole	Doypack, Shape, Hanging Hole

Finished Bag Photo
