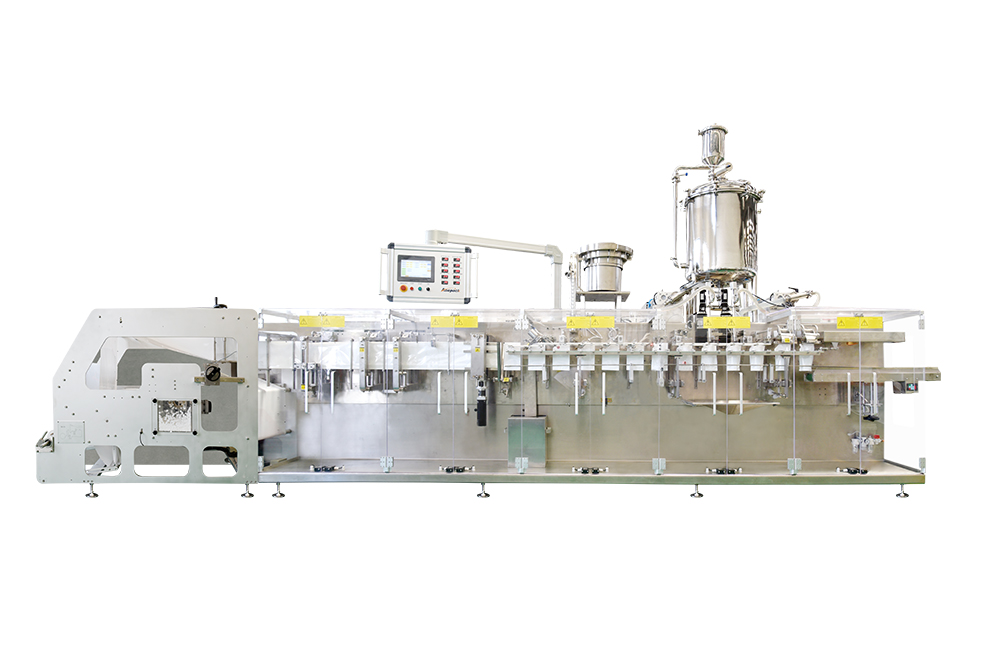

Corner Spout
Shanghai Acepack Intelligent Technology Co., Ltd.’s Corner Spout are more and more popular at home and abroad which has low cost , high quality and convenient
Share This Product:
  • Product Description
1.Film Unwind 2.Bottom Hole Pouching 3.Bag Forming 4.Film Guide 5.Bottom Seal 6.Vertical Seal I 7.Vertical Seal II 8.Photocell 9.Servo Advance 10.Cutting 11.Pouch Catching I 12.Pouch Catching II 13.Slant Opening Cutting 14.First Pouch Opening 15.Vibrator 16.Spout Inserting 17.Spout Seal 18.Second Pouch Opening 19.Air Flushing 20.Filling I 21.Filling II 22.Pouch Stretching 23.Top Seal I 24.Top Seal II 25.Finished Product 26.Outlet
Technical Parameter

Modle

DS-180SXC

DS-240SXC

DS-280DSXC

Pouch Size

110*180mm(Min)
180*260mm(Max)

110*180mm(Min)
240*320mm(Max)

110*120mm(Min)
140*250mm(Max)

Filling capacity

1200ml

2000ml

600ml

Packing capacity

40-60ppm

30-60ppm

80-120ppm

Powder

9KW

11KW

13.2kw

Air consumption

250NL/min

350NL/min

500NL/min

Machine Dimensions

6650mm(L)
1100mm(W)
1400mm(H)

7900mm(L)
1250mm(W)
1550mm(H)

8600mm(L)
1110mm(W)
1400mm(H)

Weight

2500kg

3000kg

3400kg

Function

Doypack,Shape,
Hanging Hole,
Corner Spout

Doypack,
Shape,
Hanging Hole,
Corner Spout

Doypack,
Shape,
Hanging Hole,
Corner Spout

Finished Bag Photo
Feedback form contact with us
Related Product

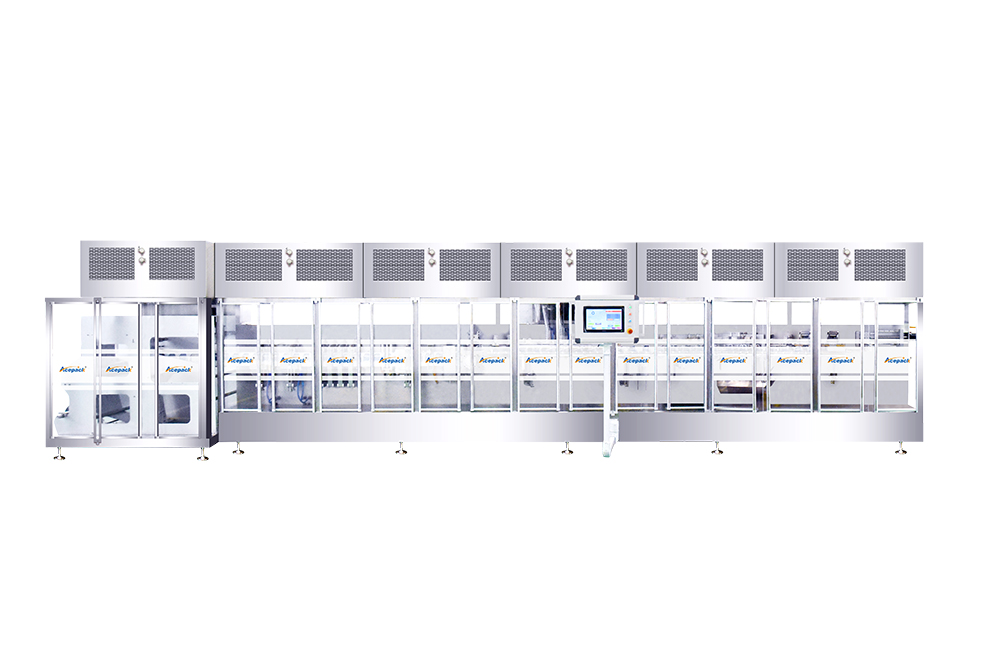

Doypack Packing Machine
