Front Spout

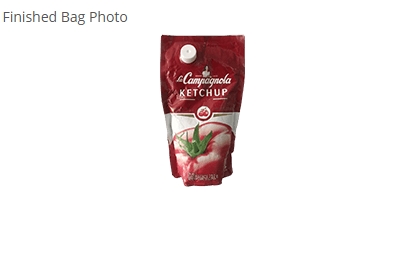

1 Film Unwind 2 Bottom Hole Punching 3 Bag Forming 4 Film Guide 5 Bottom Seal 6 Vertical Seal I 7 Vertical Seal II 8 Photocell 9 Servo Advance 10 Cutting 11 Pouch Catching I 12 Pouch Catching II 13 Slant Opening Cutting 14 First Pouch Opening 15 Vibrator 16 Spout Inserting 17 Spout Seal 18 Second Pouch Opening 19 Air Flushing 20 Filling I 21 Filling II 22 Pouch Stretching 23 Top Seal I 24 Top Seal II 25 Finished Product 26 Outlet
