![Top Spout](http://resourcewebsite.singoo.cc/image/5d8dbfa92398a.jpg)
Top Spout
1 Film Unwind 2 Bottom Hole Punching 3 Bag Forming 4 Film Guide 5 Bottom Seal 6 Vertical Seal I 7 Vertical Seal II 8 Photocell 9 Servo Advance 10 Cutting 11 Pouch Catching I 12 Pouch Catching II 13 Slant Opening Cutting 14 First Pouch Opening 15 Vibrator 16 Spout Inserting 17 Spout Seal 18 Second Pouch Opening 19 Air Flushing 20 Filling I 21 Filling II 22 Pouch Stretching 23 Top Seal I 24 Top Seal II 25 Finished Product 26 Outlet
![](http://resourcewebsite.singoo.cc/attachment/5d9009e639c33.jpg)

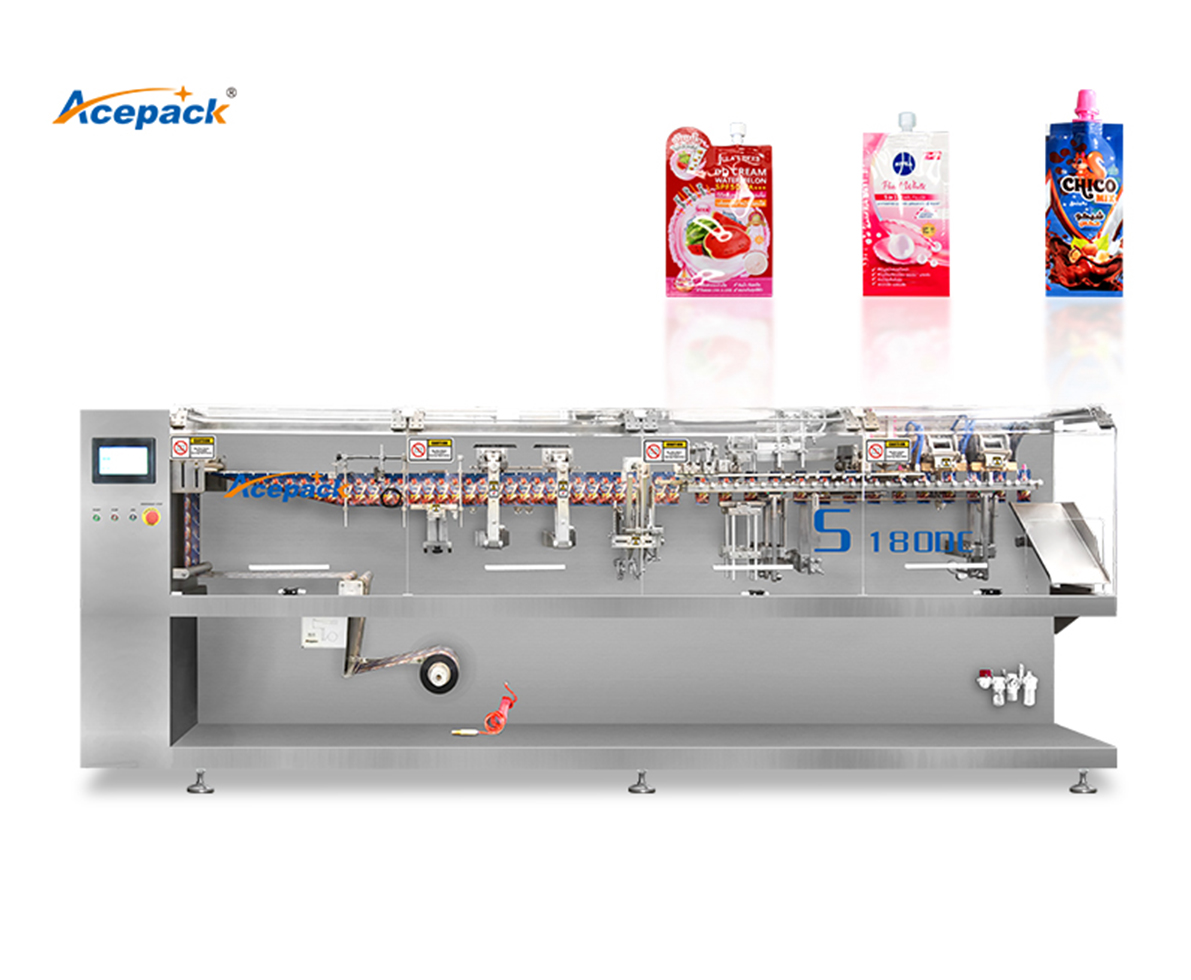

Modle |
S-180C |
Pouch Size |
50*80mm(Min) |
Filling capacity |
400ml |
Packing capacity |
40-80ppm |
Powder |
5.5KW |
Air consumption |
250NL/min |
Machine Dimensions |
4500mm(L) |
Weight |
1800kg |
Function |
Flat Pouch, |
