Experienced supplier of Special-Shaped Pre made Pouch Packing Machine,Duplex Shaped Premade stand up pouch packaging machine

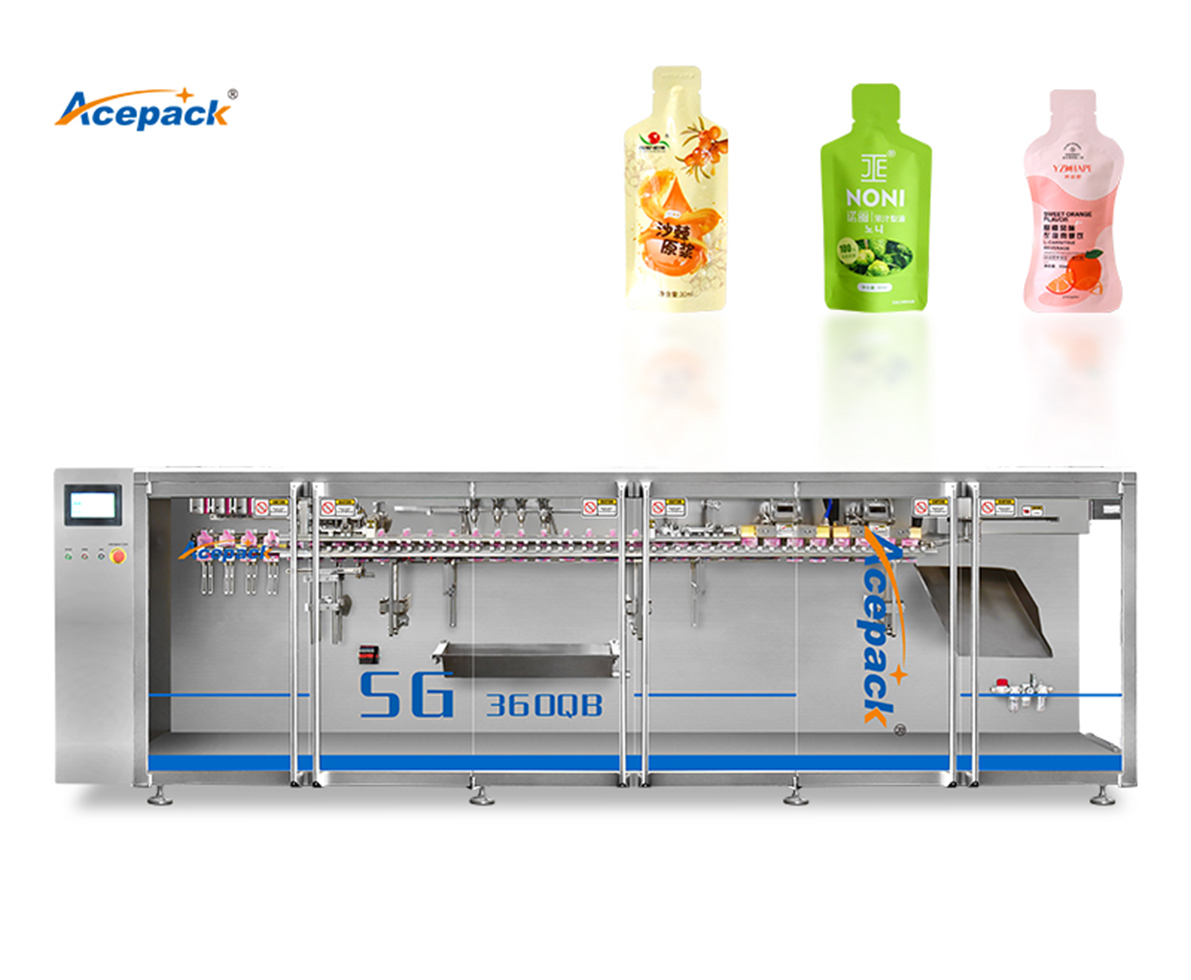

Duplex Shaped Premade stand up pouch packaging machine

Home > Products > Premade Bag Packing Machine > Duplex Shaped Premade stand up pouch packaging machine

Duplex Shaped Premade stand up pouch packaging machine

Shanghai Acepack Intelligent Technology Co., Ltd. is one of the toppest Special-Shaped Pre made Pouch Packing Machine,Duplex Shaped Premade stand up pouch packaging machine in China.During these years of exporting , Shanghai Acepack Intelligent Technology Co., Ltd. now has rich experience in the worldwide markets

Share This Product:

Product Description

1.Double Premade Pouch Stack 2. Double Flip-Out Pouch-Picking Unit 3.Double Pouch Opening 4. Double Air Flushing 5.First Filling 6.Second Filling 7.Top Seal I 8.Top Seal II 9.Finished Product 10.Outlet

Technical Parameter

model	SG-360D	SG-360DZ
Pouch Size	90mmX110mm(Min.) 180mmX260mm(Max.)	90mmX110mm(Min.) 180mmX260mm(Max.)
Filling Capacity	1200mL	1200mL
Packaging Speed	60-120ppm	60-120ppm
Power	4.5kw	4.5kw
Air Consumption	500NL/min	550NL/min
Machine Dimensions	4055mm(L) 980mm(W) 1400mm(H)	4055mm(L) 980mm(W) 1400mm(H)
Weight	2000kg	2100kg
Function	Flat Pouch, Doy Pack,	Flat Pouch, Doy Pack, Zipper

Finished Bag Photo
