The fully servo multi-lane packaging machine adopts a 1-18 column design. Each column can achieve a packaging speed of 70-80 bags per minute. It can package powder, liquid, granules, capsules and other product materials.
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Main standard features
This equipment adopts an advanced full servo control system, which precisely coordinates the actions of each execution unit, significantly improving the overall efficiency (OEE) of the equipment, effectively reducing downtime and energy consumption, and helping to achieve efficient and stable continuous production.
Supports customization of multiple measurement methods. Based on the material characteristics and production capacity requirements, various high-precision measurement modes such as weighing type, screw type, and volumetric type can be flexibly configured to meet the diverse production and packaging needs of products.
The equipment has strong scalability in functions, and supports optional installation of industrial-grade laser coding systems, high-speed vision inspection modules, and audit-tracing software compliant with FDA requirements. This enables comprehensive management and traceability of product identification, quality assessment, and production data.
The overall design of the machine complies with the EHS (Environment, Health and Safety) management system standards. It features comprehensive safety protection and cleaning designs, effectively ensuring the occupational health of operators, and also meeting the requirements of modern green factories.
Integrating an automatic nitrogen filling and replacement system, it can efficiently remove the residual oxygen inside the packaging, achieving a stable residual oxygen rate of less than 2%. This significantly extends the shelf life of easily oxidizable products, and enhances product quality and safety.
Equipped with a 18.5-inch ultra-large industrial touch screen, combined with an intuitive and user-friendly 4.0 intelligent human-computer interaction interface, it supports one-click operation and quick parameter setting, real-time monitoring of production data, significantly enhancing operational convenience and management efficiency.
The equipment operates smoothly and efficiently, with a stable production speed of 70-80 cuts per minute. While ensuring the quality of packaging and sealing accuracy, it significantly increases the output of a single line and meets the requirements of medium-high speed large-scale production.
Supports customization of multiple measurement methods. Based on the material characteristics and production capacity requirements, various high-precision measurement modes such as weighing type, screw type, and volumetric type can be flexibly configured to meet the diverse production and packaging needs of products.
The equipment has strong scalability in functions, and supports optional installation of industrial-grade laser coding systems, high-speed vision inspection modules, and audit-tracing software compliant with FDA requirements. This enables comprehensive management and traceability of product identification, quality assessment, and production data.
The overall design of the machine complies with the EHS (Environment, Health and Safety) management system standards. It features comprehensive safety protection and cleaning designs, effectively ensuring the occupational health of operators, and also meeting the requirements of modern green factories.
Integrating an automatic nitrogen filling and replacement system, it can efficiently remove the residual oxygen inside the packaging, achieving a stable residual oxygen rate of less than 2%. This significantly extends the shelf life of easily oxidizable products, and enhances product quality and safety.
Equipped with a 18.5-inch ultra-large industrial touch screen, combined with an intuitive and user-friendly 4.0 intelligent human-computer interaction interface, it supports one-click operation and quick parameter setting, real-time monitoring of production data, significantly enhancing operational convenience and management efficiency.
The equipment operates smoothly and efficiently, with a stable production speed of 70-80 cuts per minute. While ensuring the quality of packaging and sealing accuracy, it significantly increases the output of a single line and meets the requirements of medium-high speed large-scale production.

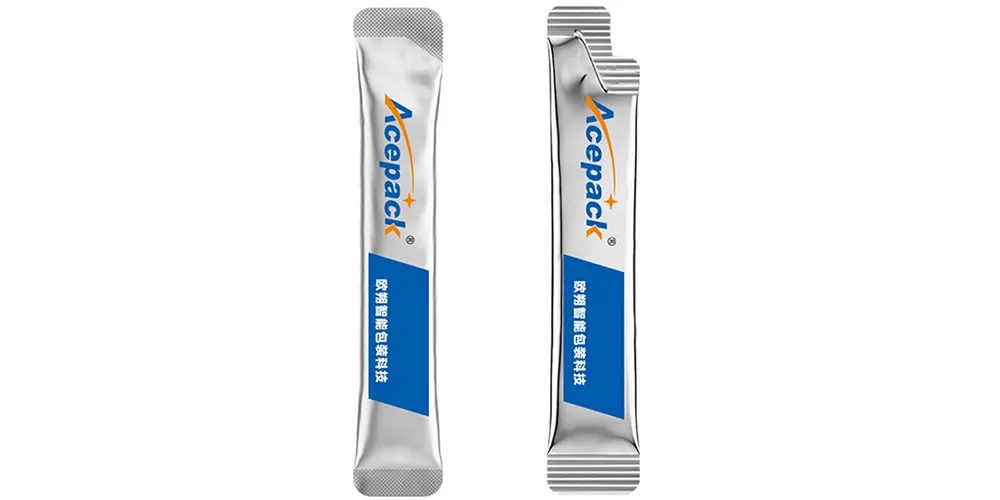

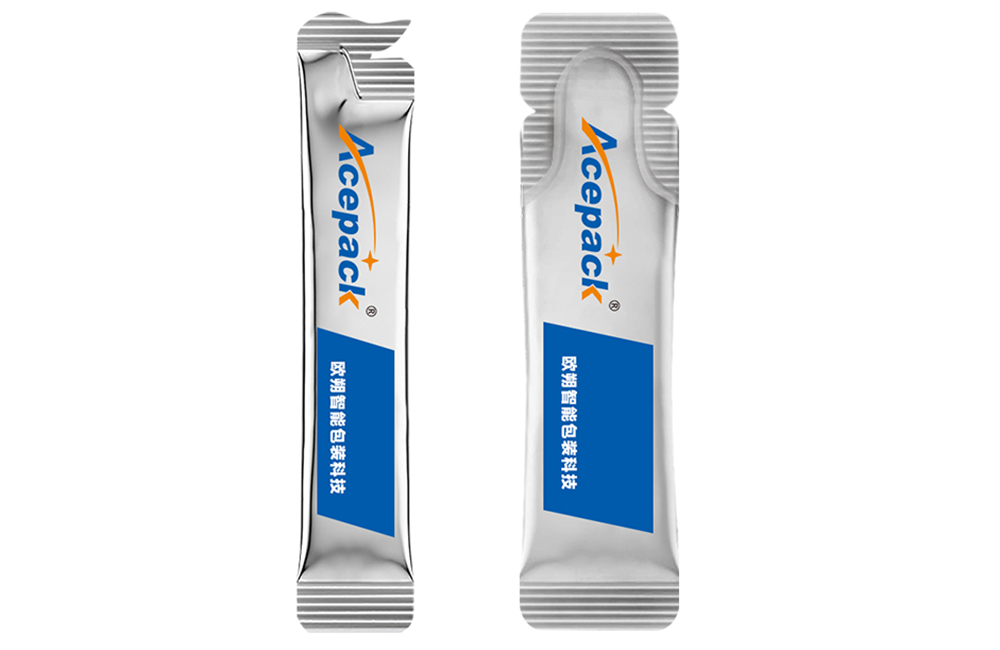

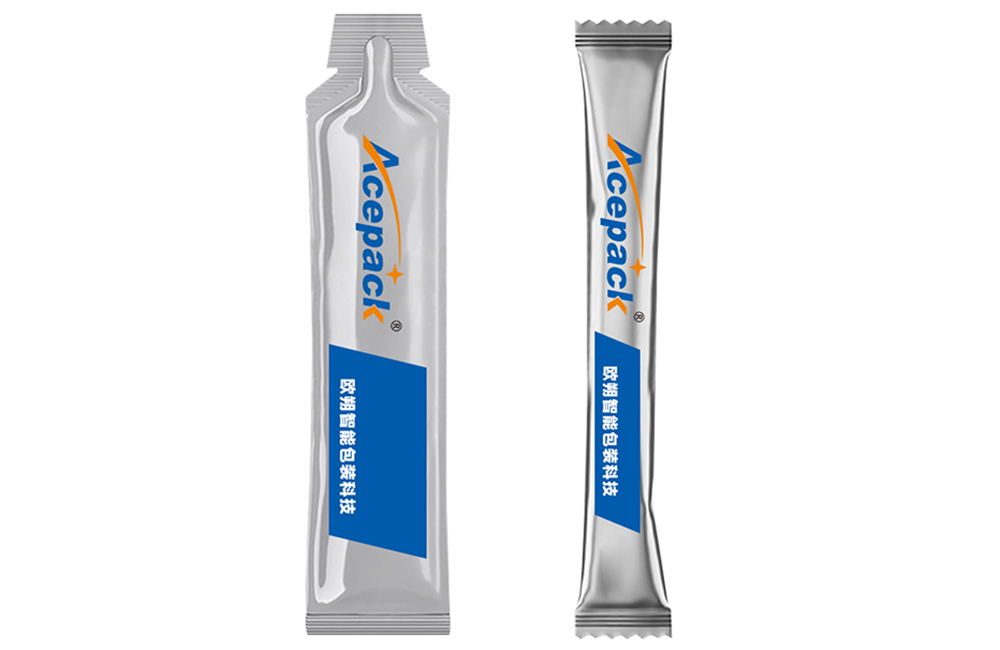

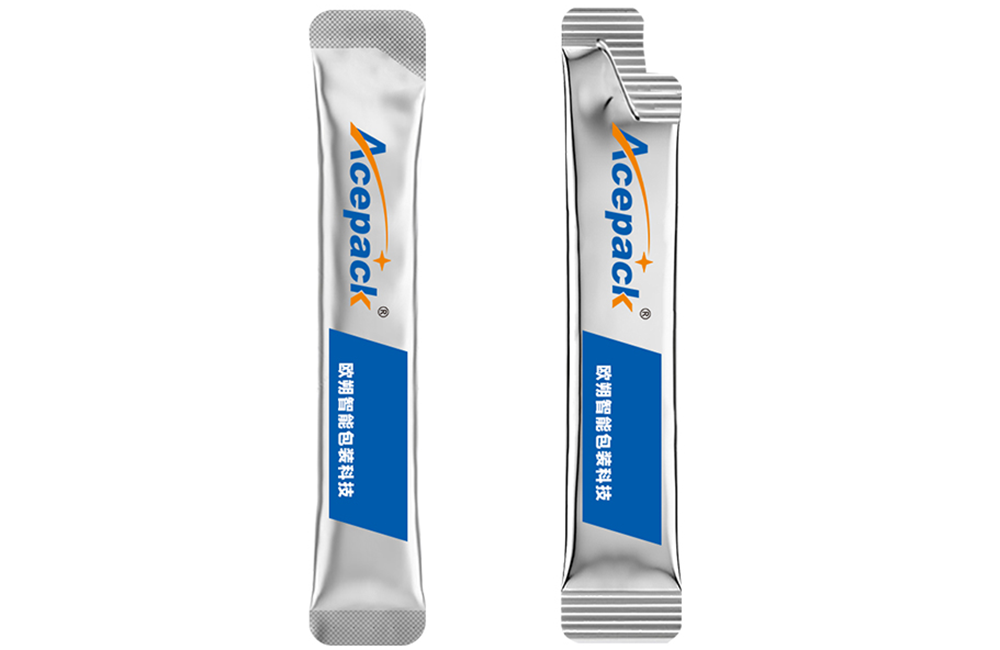

Packaging formats
Technical specifications
| Model | MS-200 | MS-500 | MS-700 | MS-800 | MS-900 |
| Lane Avenue | 1-4 Lane | 4-12 Lane | 4-18 Lane | 4-12 Lane | 5-18 Lane |
| Mastering Method | Ceramic pump Long screw Short screw Volumetric Cup Electronic granulation counter |
Ceramic pump Long screw Short screw Volumetric Cup Electronic granulation counter |
Ceramic pump Long screw Short screw Volumetric Cup Electronic granulation counter |
Ceramic pump Long screw Short screw Volumetric Cup Electronic granulation counter |
Ceramic pump Long screw Short screw Volumetric Cup Electronic granulation counter |
| Capacity | 40-80 bags/Lane/minute | 40-80 bags/Lane/minute | 40-80 bags/Lane/minute | 40-80 bags/Lane/minute | 40-80 bags/Lane/minute |
| Filling capacity | Powder: 0.5-50g Granule: 0.5-30g Liquid: 5-50ml Pills, tablets: 1-120pc |
Powder: 0.5-50g Granule: 0.5-30g Liquid: 5-50ml Pills, tablets: 1-120pc |
Powder: 0.5-50g Granule: 0.5-30g Liquid: 5-50ml Pills, tablets: 1-120pc |
Powder: 0.5-50g Granule: 0.5-30g Liquid: 5-50ml Pills, tablets: 1-120pc |
Powder: 0.5-50g Granule: 0.5-30g Liquid: 5-50ml Pills, tablets: 1-120pc |
| Pouch Size | Length: 60-180mm Width: 15-70mm Max.260mm |
Length: 60-180mm Width: 15-70mm Max.500mm |
Length: 60-180mm Width: 15-70mm Max.750mm |
Length: 60-180mm Width: 15-70mm Max.840mm |
Length: 60-180mm Width: 15-70mm Max.980mm |
| Sealing type | Back sealing/Stick bag | Back sealing/Stick bag | Back sealing/Stick bag | Back sealing/Stick bag | Back sealing/Stick bag |
| Cutting type | Straight cutting Zig zag cutting Round corner cutting Die cutting |
Straight cutting Zig zag cutting Round corner cutting Die cutting |
Straight cutting Zig zag cutting Round corner cutting Die cutting |
Straight cutting Zig zag cutting Round corner cutting Die cutting |
Straight cutting Zig zag cutting Round corner cutting Die cutting |
| Power requirement | 0.8Mpa/0.8-1.2m³/min; 3.5-20kw | 0.8Mpa/0.8-1.2m³/min; 3.5-20kw | 0.8Mpa/0.8-1.2m³/min; 3.5-20kw | 0.8Mpa/0.8-1.2m³/min; 3.5-20kw | 0.8Mpa/0.8-1.2m³/min; 3.5-20kw |
| Dimensions & Weight | 1750*1100mm/1300kg | 2400*1550mm/3000kg | 2400*1800mm/≈3200kg | 2400*1900mm/≈3300kg | 2400*2050mm/≈3500kg |
Application
A wide range of dosing systems for all types of products on the market
How It Work？

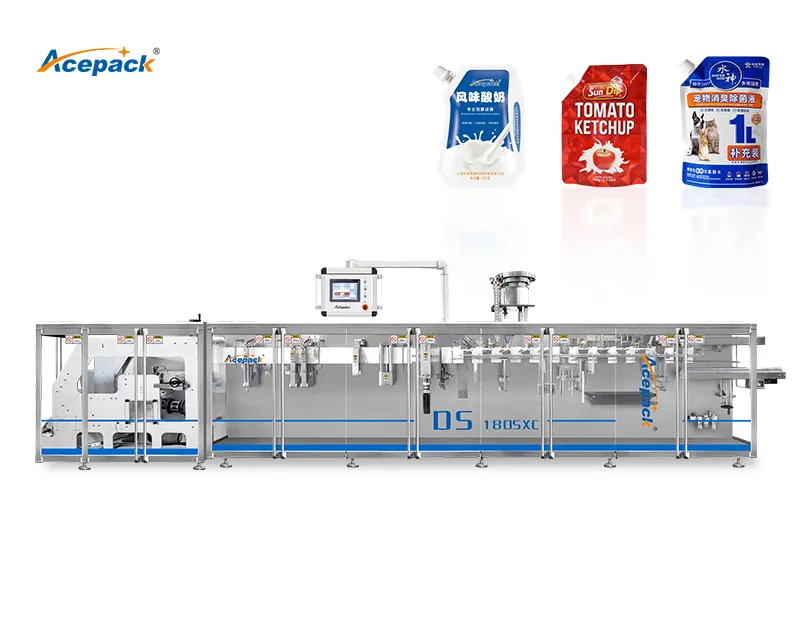

Related Products
