This production line is composed of multiple pieces of equipment such as packaging machines, sorting machines, turning and supplementary bagging machines, sorting and counting machines, and box-filling machines. It is suitable for the high-speed automated bagging operations of products in industries such as food and medicine.
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Main standard features
Multi-column packaging machine: Achieves synchronous high-speed bag making and packaging for multiple columns, enhancing the production capacity of a single line.
Sorting machine: Automatically arranges and aligns the packaged bagged products, making it easier for subsequent processing steps.
Turning bag replenishment machine: Automatically detects and replenishes the missing bag positions, adjusts the bag orientation in real time, ensuring continuous process and consistent direction.
Sorting counting machine: Accurately count and group the bags according to the preset quantity, forming regular batch units.
Packaging machine: Automatically fills the bagged products in groups into boxes, achieving integrated operations of opening the box, loading the materials, and closing the lid.
It can provide various customized solutions for the backend of the entire production line, helping enterprises achieve unmanned production.
Sorting machine: Automatically arranges and aligns the packaged bagged products, making it easier for subsequent processing steps.
Turning bag replenishment machine: Automatically detects and replenishes the missing bag positions, adjusts the bag orientation in real time, ensuring continuous process and consistent direction.
Sorting counting machine: Accurately count and group the bags according to the preset quantity, forming regular batch units.
Packaging machine: Automatically fills the bagged products in groups into boxes, achieving integrated operations of opening the box, loading the materials, and closing the lid.
It can provide various customized solutions for the backend of the entire production line, helping enterprises achieve unmanned production.

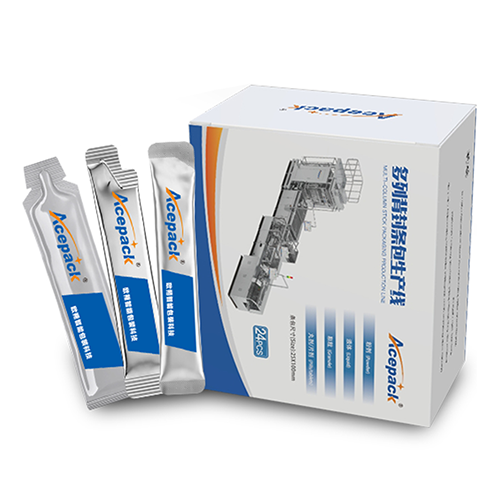

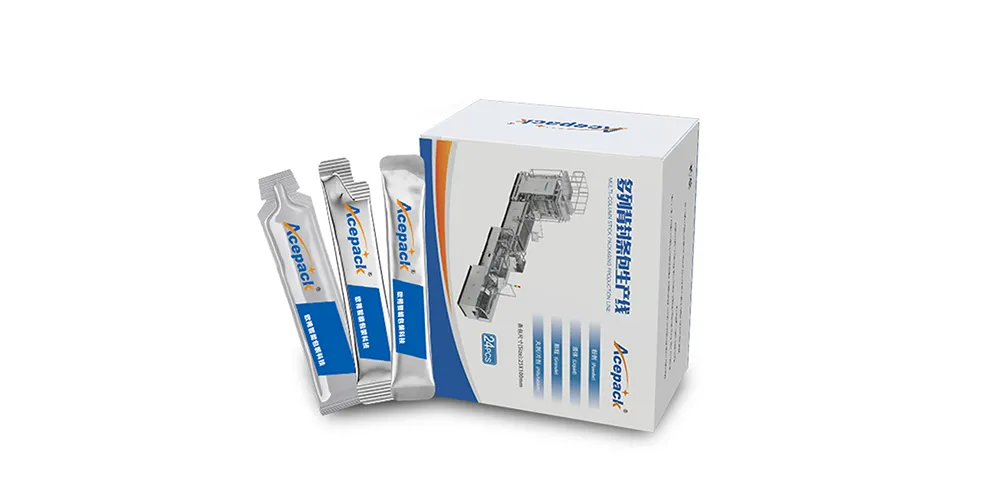

Packaging formats
Technical specifications
| Model | MS-200 | MS-500 | MS-700 | MS-800 | MS-900 |
| Lane Avenue | 1-4 Lane | 4-12 Lane | 4-18 Lane | 4-12 Lane | 5-18 Lane |
| Mastering Method | Ceramic pump Long screw Short screw Volumetric Cup Electronic granulation counter |
Ceramic pump Long screw Short screw Volumetric Cup Electronic granulation counter |
Ceramic pump Long screw Short screw Volumetric Cup Electronic granulation counter |
Ceramic pump Long screw Short screw Volumetric Cup Electronic granulation counter |
Ceramic pump Long screw Short screw Volumetric Cup Electronic granulation counter |
| Capacity | 40-80 bags/Lane/minute | 40-80 bags/Lane/minute | 40-80 bags/Lane/minute | 40-80 bags/Lane/minute | 40-80 bags/Lane/minute |
| Filling capacity | Powder: 0.5-50g Granule: 0.5-30g Liquid: 5-50ml Pills、tablets: 1-120pc |
Powder: 0.5-50g Granule: 0.5-30g Liquid: 5-50ml Pills、tablets: 1-120pc |
Powder: 0.5-50g Granule: 0.5-30g Liquid: 5-50ml Pills、tablets: 1-120pc |
Powder: 0.5-50g Granule: 0.5-30g Liquid: 5-50ml Pills、tablets: 1-120pc |
Powder: 0.5-50g Granule: 0.5-30g Liquid: 5-50ml Pills、tablets: 1-120pc |
| Pouch Size | Length: 60~180mm Width: 15~70mm Max.260mm |
Length: 60~180mm Width: 15~70mm Max.500mm |
Length: 60~180mm Width: 15~70mm Max.750mm |
Length: 60~180mm Width: 15~70mm Max.840mm |
Length: 60~180mm Width: 15~70mm Max.980mm |
| Sealing type | Back sealing/Stick bag | Back sealing/Stick bag | Back sealing/Stick bag | Back sealing/Stick bag | Back sealing/Stick bag |
| Cutting type | Straight cutting Zig zag cutting Round corner cutting Die cutting |
Straight cutting Zig zag cutting Round corner cutting Die cutting |
Straight cutting Zig zag cutting Round corner cutting Die cutting |
Straight cutting Zig zag cutting Round corner cutting Die cutting |
Straight cutting Zig zag cutting Round corner cutting Die cutting |
| Power requirement | 0.8Mpa/0.8 ~ 1.2m³/min; 3.5~20kw | 0.8Mpa/0.8 ~ 1.2m³/min; 3.5~20kw | 0.8Mpa/0.8 ~ 1.2m³/min; 3.5~20kw | 0.8Mpa/0.8 ~ 1.2m³/min; 3.5~20kw | 0.8Mpa/0.8 ~ 1.2m³/min; 3.5~20kw |
| Dimensions & Weight | 1750*1100mm/1300kg | 2400*1550mm/3000kg | 2400*1800mm/≈3200kg | 2400*1900mm/≈3300kg | 2400*2050mm/≈3500kg |
Application
A wide range of dosing systems for all types of products on the market
