Corner-Spout Premade stand up pouch packaging machine

Shanghai Acepack Intelligent Technology Co., Ltd. is one of the toppest Corner-Spout Premade stand up pouch packaging machine,Corner Spout in China.During these years of exporting , Shanghai Acepack Intelligent Technology Co., Ltd. now has rich experience in the worldwide markets

Share This Product:

Product Description

1 Film Unwind 2 Bottom Hole Punching 3 Bag Forming 4 Film Guide 5 Bottom Seal 6 Vertical Seal I 7 Vertical Seal II 8 Photocell 9 Servo Advance 10 Cutting 11 Pouch Catching I 12 Pouch Catching II 13 Slant Opening Cutting 14 First Pouch Opening 15 Vibrator 16 Spout Inserting 17 Spout Seal 18 Second Pouch Opening 19 Air Flushing 20 Filling I 21 Filling II 22 Pouch Stretching 23 Top Seal I 24 Top Seal II 25 Finished Product 26 Outlet

Technical Parameter

model	SG-210XC	SG-240XC	SG-280XC
Pouch Size	110mmX180mm(Min.) 210mmX310mm(Max.)	100mmX180mm(Min.) 240mmX320mm(Max.)	110mmX180mm(Min.) 280mmX400mm(Max.)
Filling Capacity	1600mL	2000mL	3000mL
Packaging Speed	30-60ppm	30-60ppm	30-60ppm
Power	4.4kw	4.2kw	6.5kw
Air Consumption	250NL/min	450NL/min	450NL/min
Machine Dimensions	3660mm(L) 970mm(W) 1400mm(H)	4180mm(L) 1010mm(W) 1400mm(H)	4100mm(L) 1020mm(W) 1500mm(H)
Weight	1300kg	2000kg	1800kg
Function	Flat Pouch, Doy Pack, Spout	Flat Pouch, Doy Pack, Spout	Flat Pouch, Doy Pack, Spout

Finished Bag Photo

Feedback form contact with us

Related Product

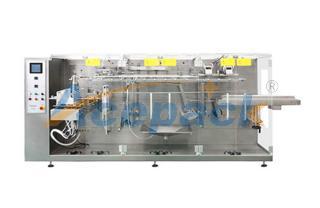

Standard Premade stand up pouch packaging machine

1.Premade Pouch Stack 2.Flip-Out Pouch-Picking Unit 3.Pouch Opening 4.Air Flushing 5.Filling I 6.Filling II 7.Pouch Stretching 8.Top Seal 9.Finished Product 10.Outlet ...

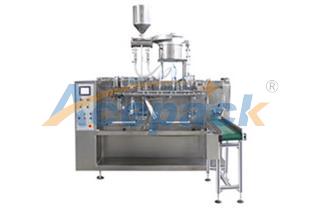

Zipper Premade stand up pouch packaging machine

1.Premade Pouch Stack 2.Flip-Out Pouch-Picking Unit 3.Zipper Opening 4.Pouch Opening 5.Air Flushing 6.First Filling 7.Second Filling 8.Pouch Stretching 9.Top Seal I 10.Top Seal II 11.Finished P...

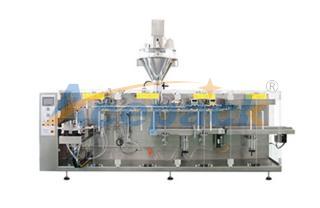

Top-Spout Premade stand up pouch packaging machine
