As the best China Link supplier,Shanghai Acepack Intelligent Technology Co., Ltd. provides quality Link to global clients
Contact Us Request a quote
Share This Product:
  • Product Description
  • Technical Parameter
  • Finished Bag Photo

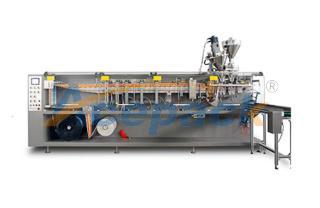

1.Film Unwind 2.Pouch Forming 3.Film Guide 4.Photocell 5.Bottom Seal 6.Vertical Seal 7.Filling 8.Top Seal 9.Rolling Perferation Knife 10.Cutting 11.Pouch Pulling 12.Outlet

Modle

S-110T

S-180T

Pouch Size

50*50mm（Min）
110*120mm(Max)

50*80mm（Min）
90*180mm(Max)

Filling capacity

60ml

100ml

Packing capacity

40-80ppm

100-160ppm

Powder

2.5KW

4.5KW

Air consumption

100NL/min

200NL/min

Machine Dimensions

2200mm(L)
750mm(W)
1400mm(H)

3500mm(L)
970mm(W)
1500mm(H)

Weight

700kg

1400kg

Function

3 side seal,
4 side seal,
Linked

3 side seal,
4 side seal，
Twin-link
